Floating Bladder Sea Slug w/ pump (6,600 Gallon/157 bbl/25 tonnes)
Unit Description (English) |
||||||||||||||||
|
Temporary (towable floating or land) storage for recovered oil. (1) 6,600 gallon (157 barrel) bladder packaged in a wood crate.
|
||||||||||||||||
Product Specifications |
||||||||||||||||
|
||||||||||||||||
Product Description (English) |
||||||||||||||||
|

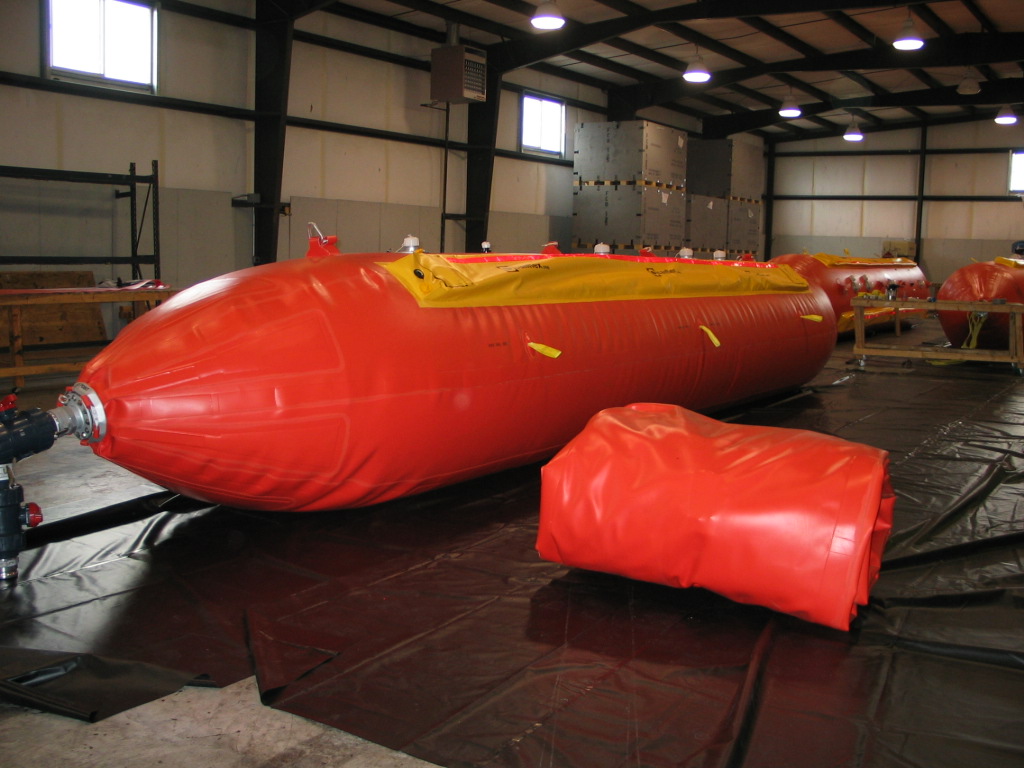

Canflex FCB-60. 6,600 gallons (157 barrels, 25 metric tonnes) towable storage bladder. Constructed of PVC coated polyurethane fabric. Length when filled: 11.7m, diameter: 1.8m. Large diameter offload hatch accomodates the Lamor GTA 20 heavy oil transfer pump, included in the package. The GTA 20 is a modified positive displacement Archimedes screw pump, maximum peak capacity 20 tonnes per hour/ 288 gpm. |
||||||||||||||||
Product Description (Spanish) |
||||||||||||||||
|
Vejiga De 6.600 Galones |
||||||||||||||||
Product Use |
||||||||||||||||
|
Temporary floating storage for recovered oil in support of on-water skimming operations. It can also be used for storage of recovered oil on land when placed in a shallow pit for support. |
||||||||||||||||
Operational Considerations |
||||||||||||||||
|
Vessel operators need to exercise care in towing bladders by being aware of the draft and in maneuvering alongside piers. For discharge operation, a 3 inch hose is connected to lid along with hydraulic connections from power pack. Air inflatable chamber in nose for buoyancy; manual inflator is included. Hydraulic power pack is not included. |
||||||||||||||||
Notes |
||||||||||||||||
|
6,600 gallons (157 barrels, 25 metric tonnes) |
||||||||||||||||
