Floating Bladder Sea Slug (2,500 Gallon/60 bbl/10 tonnes) 4 each
Unit Description (English) |
||||||||||||||||
|

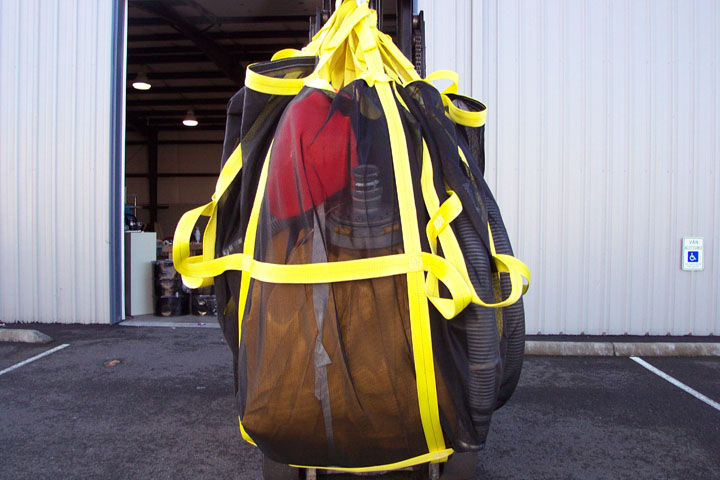

Crate of (4) 2,500 gallon (60 barrel/10 tonnes each bladder) packaged in a K-1. Temporary, (towable floating or land) storage for recovered oil.
|
||||||||||||||||
Product Specifications |
||||||||||||||||
|
||||||||||||||||
Product Description (English) |
||||||||||||||||
|

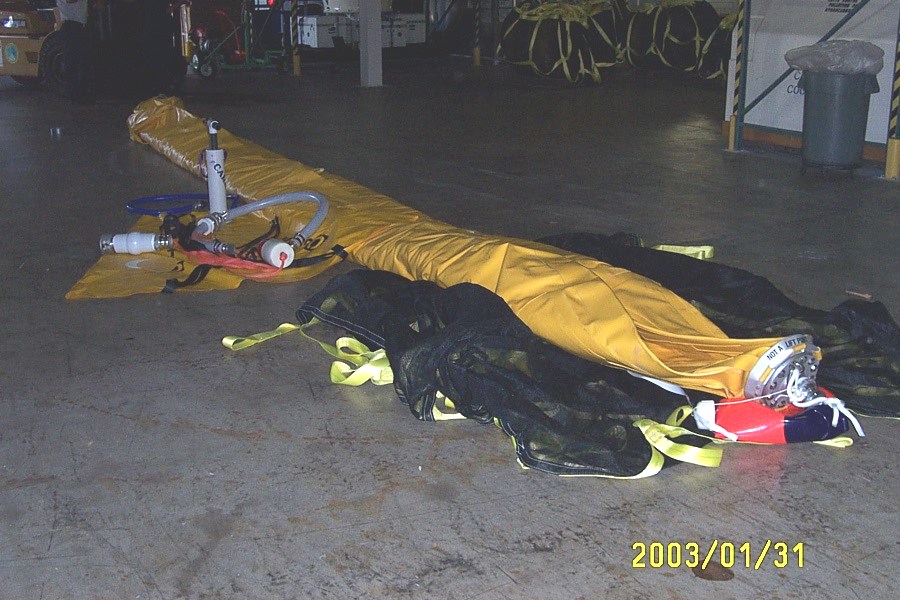

(4) Canflex FCB-25. 2,500 gallon (60 barrel, 10 metric tonnes each) towable storage bladders. Constructed of PVC coated polyurethane fabric. Packaged in one K-1 container. Each storage bladder comes with 10 feet of 4 inch suction hose attached to bladder with a 3 inch or 4 inch ball valve, supported by buoy. Adapter fittings and valves are included. The K-1 container has a liner and can be used as temporary storage, capacity of 36 bbl./6 m3. |
||||||||||||||||
Product Description (Spanish) |
||||||||||||||||
|
Camara de aire, 2500 galones marca Canflex (4) |
||||||||||||||||
Product Use |
||||||||||||||||
|
Temporary floating storage for recovered oil in support of on-water skimming operations. Can also be used for storage of recovered oil on land when placed in a shallow pit for support. |
||||||||||||||||
Operational Considerations |
||||||||||||||||
|
Vessel operators need to exercise care in towing bladders by being aware of the draft and in maneuvering alongside piers. Filling and discharging is accomplished through use of ball valve at end of hose which is suspended by a floating buoy. Air inflatable chamber in nose for buoyancy. Each unit, along with its fittings, is individually packaged in a heavy bag for easy handling. |
||||||||||||||||
