Unit Description (English)
|
System mounts on vessel of opportunity to apply dispersants using spray arms. Packaged in aluminum crate.
|
Product Specifications
|
Serial Number(s) |
D-015 |
Dimensions |
118x37x39 in / 297x94x91 cm |
Weight |
946 lb / 430 kg |
Air Transport Equiv |
0.5 |
Units in Stock |
1 as of 13 Aug 2012 |
Type of Oil Effective With: |
II, III, IV |
Environment: |
Ocean, Near Shore, River |
Price |
$21,542.00 |
|
|
Product Description (English)
|

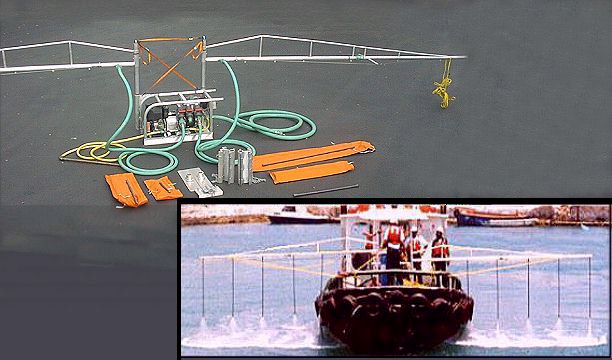

Single cylinder diesel engine driving a fiberglass body centrifugal pump. Spray arms mount on support masts attached to the pump unit frame. Alternative hardware for mounting spray arms on vessel rails or bulwarks. Complete with hoses and 1-in. dispersant pickup tube. Two 16-ft. (5m) spray arms with 5 wide angle spray nozzles each. Approximately 32 feet (10m) spray swath width. Nozzle extension pipes in three sizes are provided to adjust for different vessel freeboards. Two complete systems packaged in two wood crates that take one aircraft cargo position.
|
|
Product Description (Spanish)
|
Sistema de rociado de dispersantes, marcas Slickbar, para uso desde buques
|
|
Product Use
|
Portable system to mount on vessel of opportunity to apply dispersants to oil slicks.
|
|
Operational Considerations
|
System should be mounted on a vessel as far forward as possible. A 4-ft. by 4-ft. area is required for the pump and frame. In addition to considering the distance to the spill site from a dispersant re-supply site, the location and availability of deck space for the stowage of an onboard dispersant supply (330 gal. tote or 55-gal. drum) can significantly affect the overall vessel dispersant operation. The dispersant containers must be securely fastened to vessel to avoid CG shift and capsize potential.
|
|
