Unit Description (English)
|
System contains various components to allow transfer of dispersant from drums and tanks. Includes Personal Protective Equipment. Packaged in K-2.
|
Product Specifications
|
Serial Number(s) |
D-020A, D-023 |
Dimensions |
116x79x49 in / 295x201x125 cm |
Weight |
2558 lb / 1160 kg |
Air Transport Equiv |
1.0 |
Units in Stock |
2 as of 13 Aug 2012 |
Type of Oil Effective With: |
II, III, IV |
Environment: |
Ocean, Near Shore, River |
Price |
$42,000.00 |
|
|
Product Description (English)
|

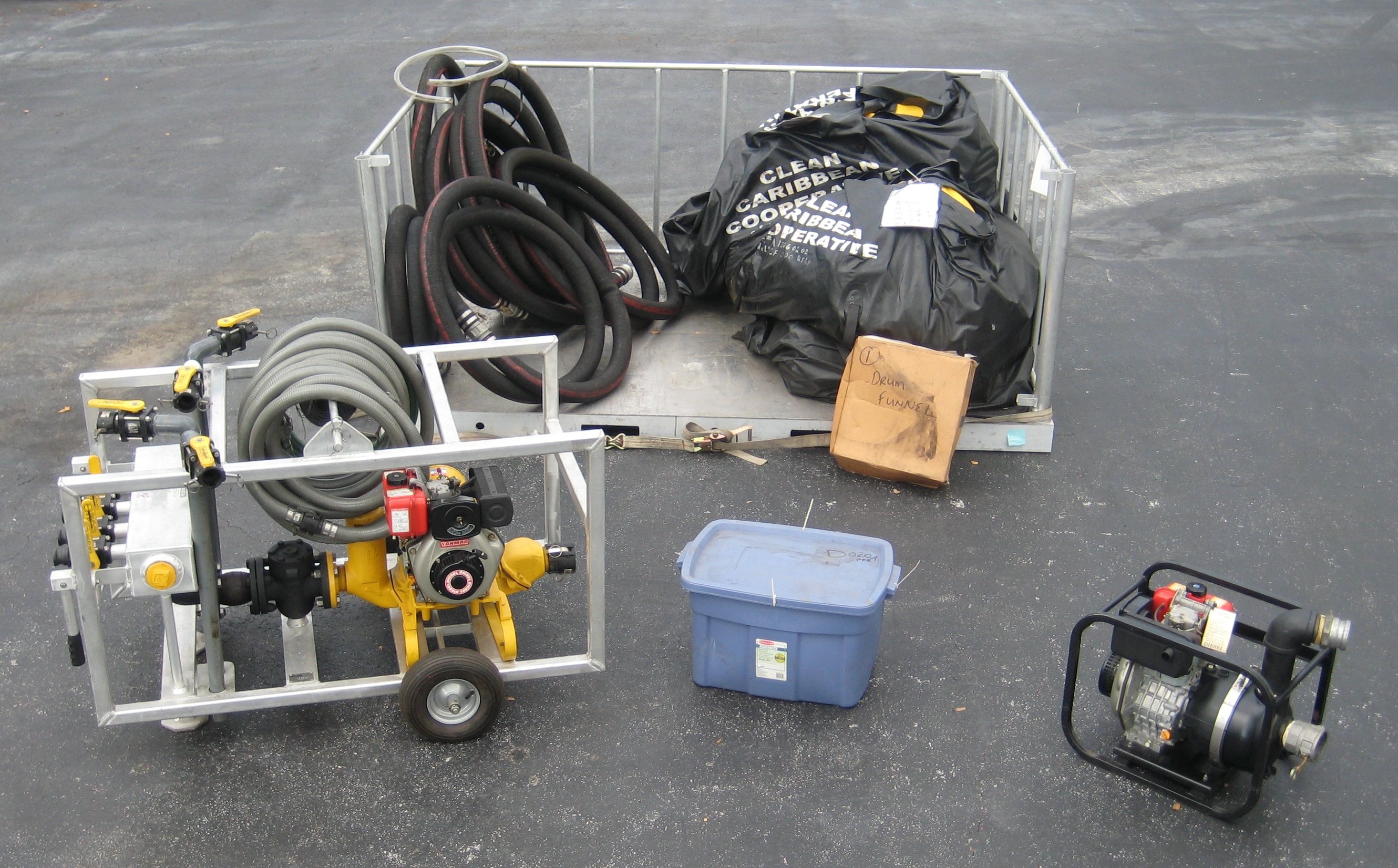

1.) For transfer from drums: 3-in. diaphragm diesel pump mounted on a cart with 4-port aluminum manifold. Four each 1-1/4-in. stinger pipes with valves and hoses (20 ft. each). Vibration damper and in-line strainer. Throughput: 85 GPM. 2.) For transfer from tanks: 3-in. centrifugal pump throughput 300 GPM. 3-in. suction hoses (95 ft. total). 20 ft. x 50 ft.berm system. Hose dollies for ease of movement. 3.) For pooling drums: (2 each) Canflex 3,000 gallon reservoir. 3-in. dry break valve system. 4.) For personnel: Personal Protective Equipment (Tyvek suits, gloves, goggles, and respirators) included. (5) Includes flow meter.
|
|
Product Description (Spanish)
|
Sistema para el traslado de dispersantes
|
|
Product Use
|

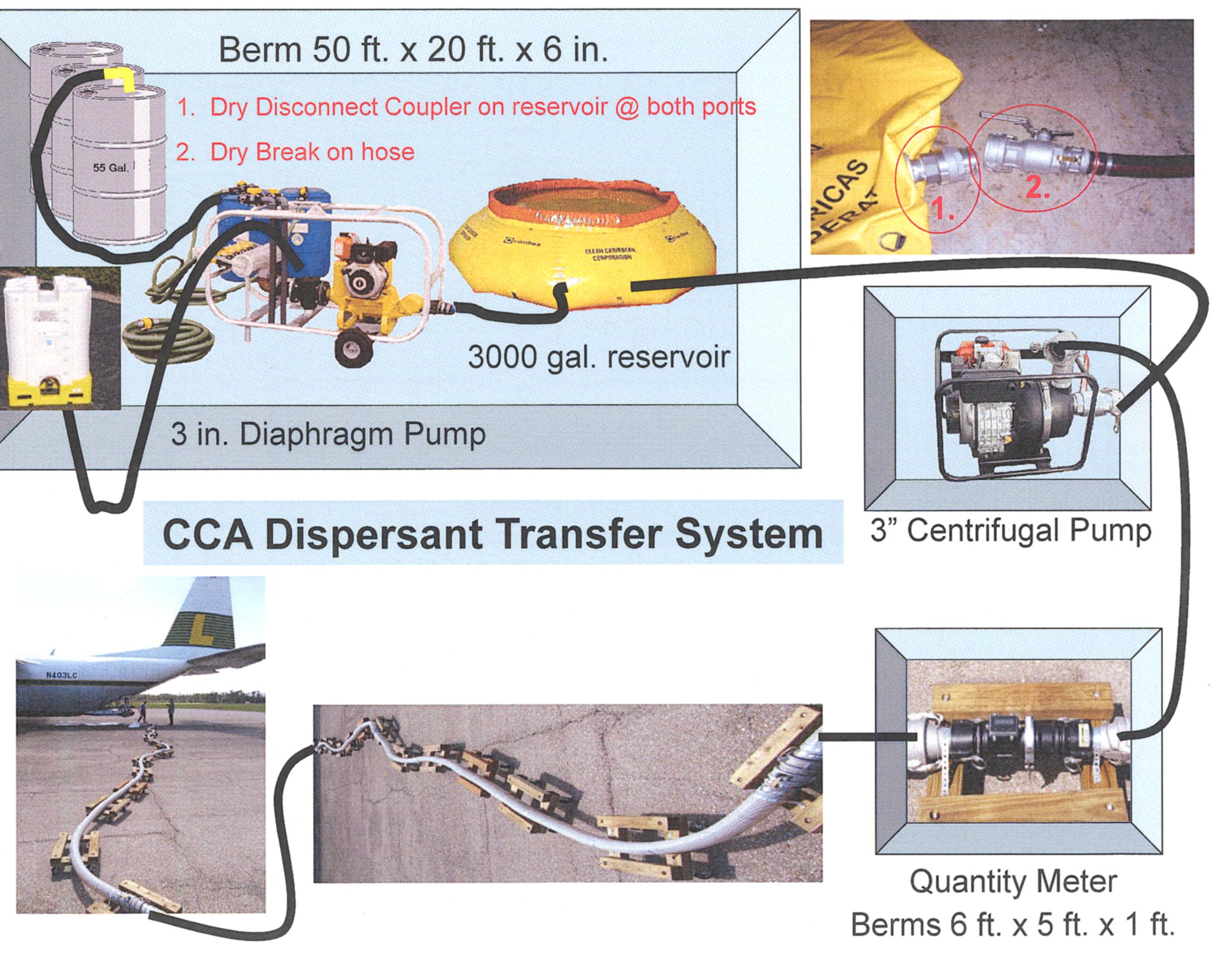

Transfer system to support dispersant operations. Transfers dispersant chemical from barrels to a portable reservoir where the dispersant can be further transferred to an application system (ADDS or helicopter spray bucket.)
|
|
Operational Considerations
|
Berms are set up to contain drips and spills during transfer operations. One side lets down to allow forklifts in with barrels of dispersant. Barrels are pumped into reservoir for consolidation allowing rapid reload of ADDS Pack with the 3-in. centrifugal pump.
|
|
Notes
|
Includes 2 open top tanks, storage capacity 3000 gal. ea., PPE.
|
|
