Shoreside Pit Liner (105,000 Gallon/2,500 bbl/398 tonnes)

Unit Description (English)

Temporary shoreside storage of recovered oil and support of disposal operations. (1) 105,000 gallon (2,500 barrel) pit liner packaged in a K-3.

Product Specifications

Serial Number(s) C-048,C-049,C-050
Dimensions 79x58x80 in / 201x147x203 cm
Weight 2196 lb / 996 kg
Air Transport Equiv 0.5
Units in Stock 3 as of 14 Nov 2012
Type of Oil Effective With: II, III, IV, V
Environment: Near Shore, River
Price $24,938.00


Product Description (English)

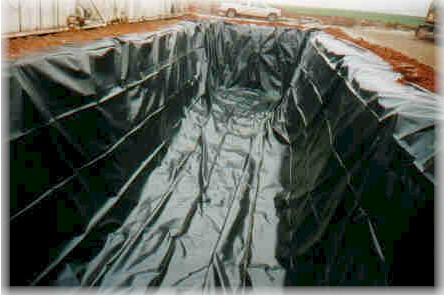

105,000 gallons (2,500 barrels, 398 metric tonnes) temporary storage capacity in a lined pit. The liner is made of Seimens XR-5 material and is packaged with a geotextile pad. Dimensions of the lined pit are 72 feet x 72 feet x 6 feet . Packaged in K-3.



Product Description (Spanish)

Forro para fosa, 86 pies cuadrados



Product Use

Temporary shoreside storage of recovered oil in the support of skimming and disposal operations.



Operational Considerations

Installation instructions are provided. A large pit must be excavated. Repair kit with 3 square yards of patch material is included with each unit. Manufacturer representative is available through the CCA Contractor and Resources Network to oversee on-site pit liner installation .



Notes

105,000 gallons (2500 barrels, 398 metric tonnes).
