Unit Description (English)
|
20 ft diameter shelter for remote field command post w/air, lights, electricity. (2) packaged in one modified A-3 Container.
|
Product Specifications
|
Serial Number(s) |
T-701, T-702 |
Dimensions |
125x88x77 in / 318 x 224 x 196 cm |
Weight |
3770 lb / 1710 kg |
Air Transport Equiv |
1.0 |
Units in Stock |
2 as of 13 Aug 2012 |
Type of Oil Effective With: |
I, II, III, IV, V |
Environment: |
Ocean, Near Shore, River |
Price |
$25,617.00 |
|
|
Product Description (English)
|

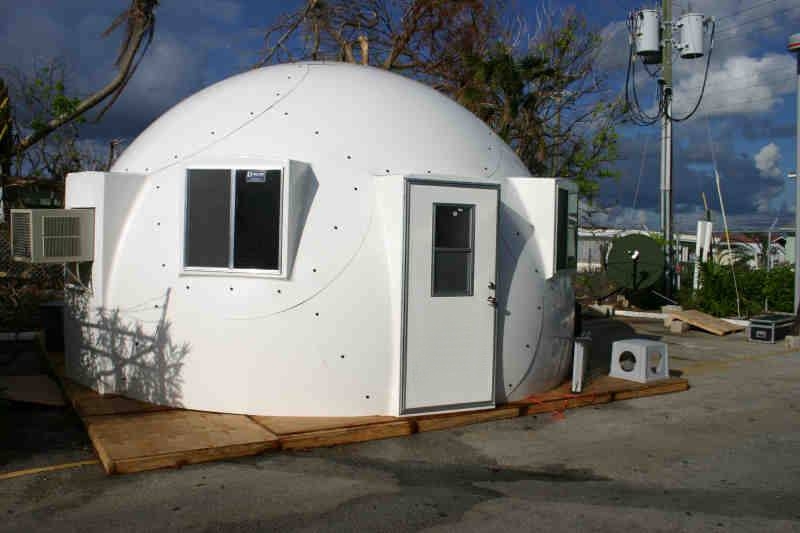

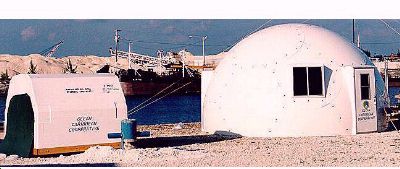

20-ft. diameter Omni-Sphere (314 square feet) structures. Portable, frameless enclosure molded of fiberglass with an air conditioner, overhead fan and light, electrical panel, vinyl floor, two doors, two windows and two flood lights. Packaged in modified A-3 containers, one or two to a container. Yanmar 5 kW diesel generators are packaged two or four to a crate to provide 220/110 power.
|
|
Product Description (Spanish)
|
Puesto de comando secundario (2)
|
|
Product Use
|
Provides shelter for remote site field command post complete with air conditioning, lighting, and electricity for radios and appliances.
|
|
Operational Considerations
|
Multiple spheres can be connected together at a doorway fitting. Two portable generators (G-000-002) provide electrical power for each Omni-Sphere: one for communications equipment, one for A/C and housekeeping requirements. Pre-wired electrical panel and outlets. UPS units for the protection of electronic equipment from power surges. Panels for the Omni-Sphere can be stacked in the bed of a pickup truck for transportation to a remote site. Assembly takes 2-3 hours under supervision. A World Shelter Corporation employee can provide construction supervision though the CCC Contractor and Resources Network. Yanmar 5 kW generators operate on diesel fuel. Crated generators can be air transported as under deck cargo.
|
|
Notes
|
Two shelters in each container. Generators available in G-001,G-002
|
|
