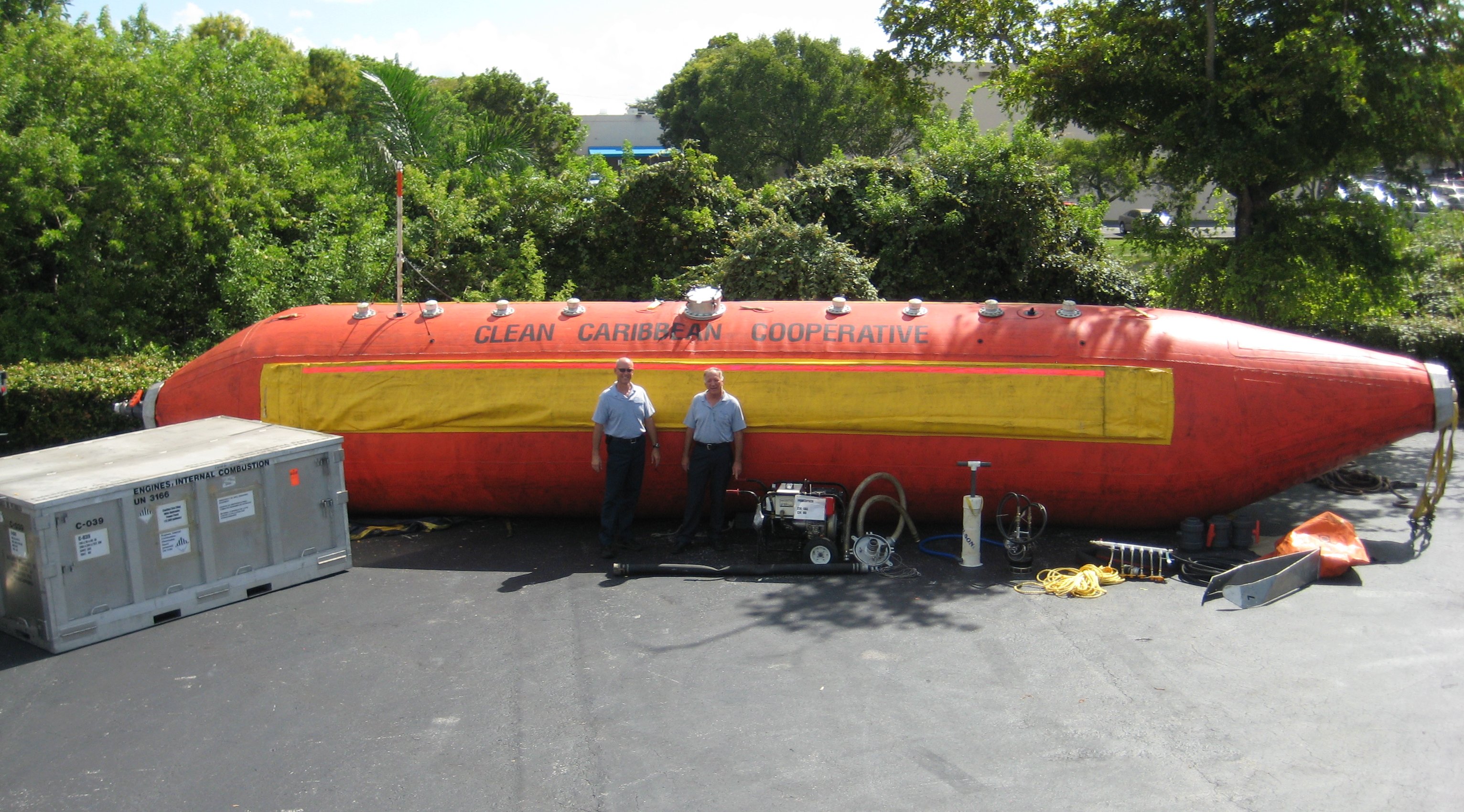

Floating Bladder Sea Slug (12,500 Gallon/300 bbl/50 tonnes)
Unit Description (English) |
||||||||||||||||
|
Temporary (towable floating or land) storage for recovered oil. (1) 12,500 gallon (300 barrel) bladder packaged in a K-1. (6) units w/power packs.
|
||||||||||||||||
Product Specifications |
||||||||||||||||
|
||||||||||||||||
Product Description (English) |
||||||||||||||||
|
Canflex FCB-125. 12,500 gallons (300 barrels, 50 metric tonnes) towable storage bladder. Constructed of PVC coated polyurethane fabric: Top half -- 88 oz. PVC coated polyurethane fabric, Bottom -- 140 oz. PVC coated polyurethane fabric. Packaged one bladder to a K-1 container. 3-inch fittings provided for filling and discharge. Each bladder has a submersible 3-inch pump for off-load (300 GPM). Diesel hydraulic power packs are included in six of the systems. The K-1 container can also be used as temporary storage, capacity of 1,500 gal./36 bbl./6 m3. |
||||||||||||||||
Product Description (Spanish) |
||||||||||||||||
|
Camara de aire 12,500 galones marca Canflex |
||||||||||||||||
Product Use |
||||||||||||||||
|
Temporary floating storage for recovered oil in support of on-water skimming operations. Can also be used for storage of recovered oil on land when placed in a shallow pit for support. Two FCB-125's are intended to support each RDSS in a shuttle operation from the skimmer to staging/off-loading site. |
||||||||||||||||
Operational Considerations |
||||||||||||||||
|
Vessel operators need to exercise care in towing bladders by being aware of the draft and in maneuvering alongside piers. For discharge operation, a 3-inch hose is connected to lid along with hydraulic connections from power pack. The internal submersible pump discharges the bladder completely in approximately 45 minutes. Air inflatable chamber in nose for buoyancy. |
||||||||||||||||
Notes |
||||||||||||||||
|
12,500 gallons (300 barrels, 50 metric tonnes). |
||||||||||||||||
