Disc/Drum Skimmer Vikoma Komara Duplex

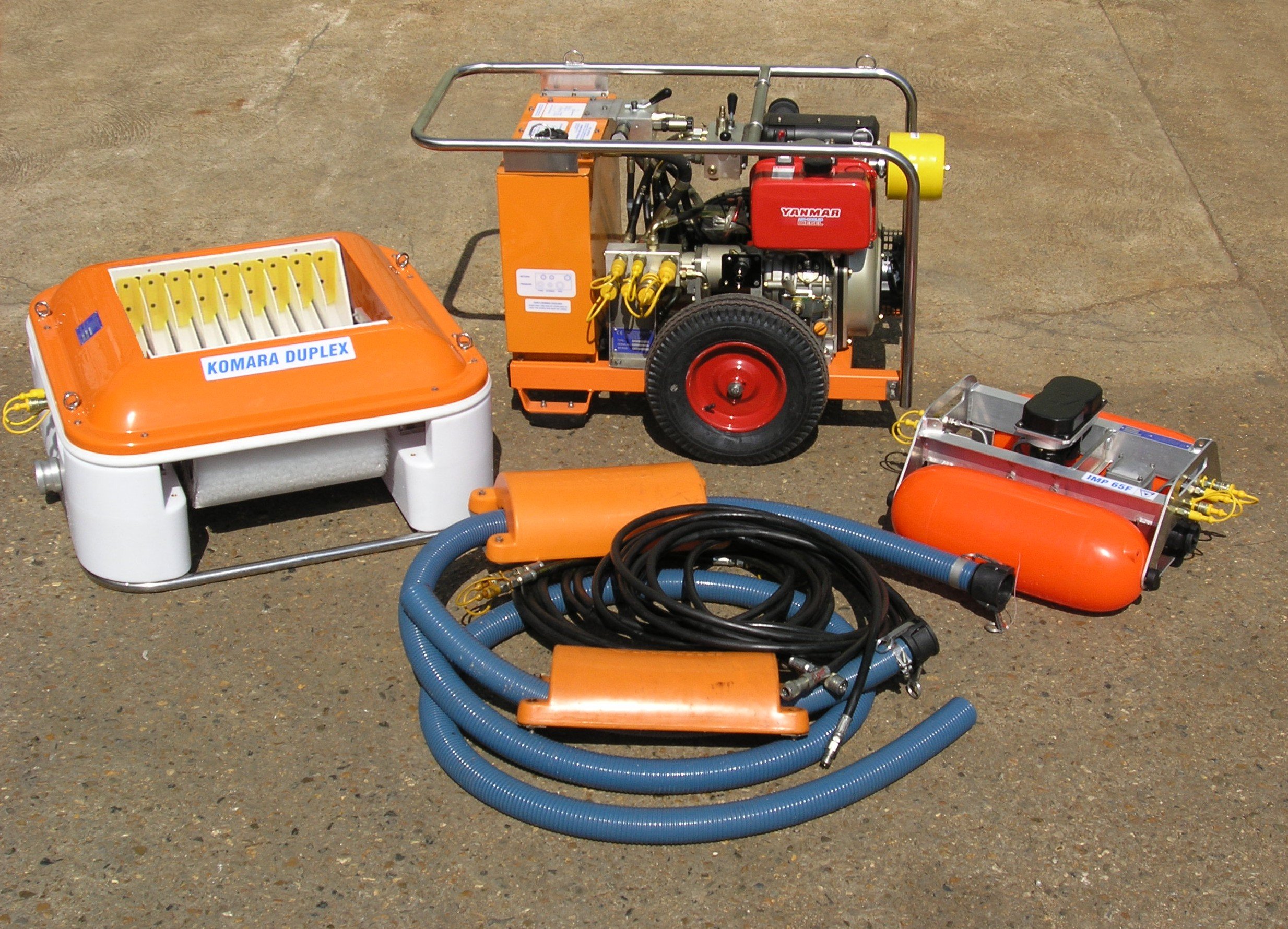

Multi-function skimmer head, transfer pump and power pack packaged in K-4 Container

Portable, versatile skimmer. Multi-function skimmer head, transfer pump and power pack with hoses and spares. Recovery rate up to 14 tonnes per hour. Derated capacity: 470 BPD/67 metric tonnes per day. Single cylinder diesel/hydraulic powerpack. 2.5-in. fittings. 4 ft./1 m. 2.5-in. suction hose. 50 ft./15 m. 2.5-in. discharge hose. (2.5-in. to 3-in. fitting included) Packaged in K-4 Container with vinyl liner; temporary storage capacity 552 gal./13 bbl./2 m3.

Sistema de recoleccion Komara

Versatility allows use as either a disc skimmer or a brush skimmer over a wide range of oil viscosities. The discs will recover oil with viscosity as low as 5cSt, maximum disc recovery rate is achieved at 2-3000cSt with very low free water pickup (typically less than 2%). The brush can extend the range, allowing oil of higher viscosity to be recovered. The skimmer can be converted from discs to brushes or vice-versa in the field in less than 1 minute without the need for special tools.

Floating pump unit coupled close to the skimmer allows pumping of higher viscosity products. Portable components for ease of movement and deployment. Power Pack has wheels.

K-4 shipping container has liner for temporary storage (552 gallons/13 bbl/2 tonnes).
