Drum Skimmer Elastec Magnum 100

Unit Description (English)

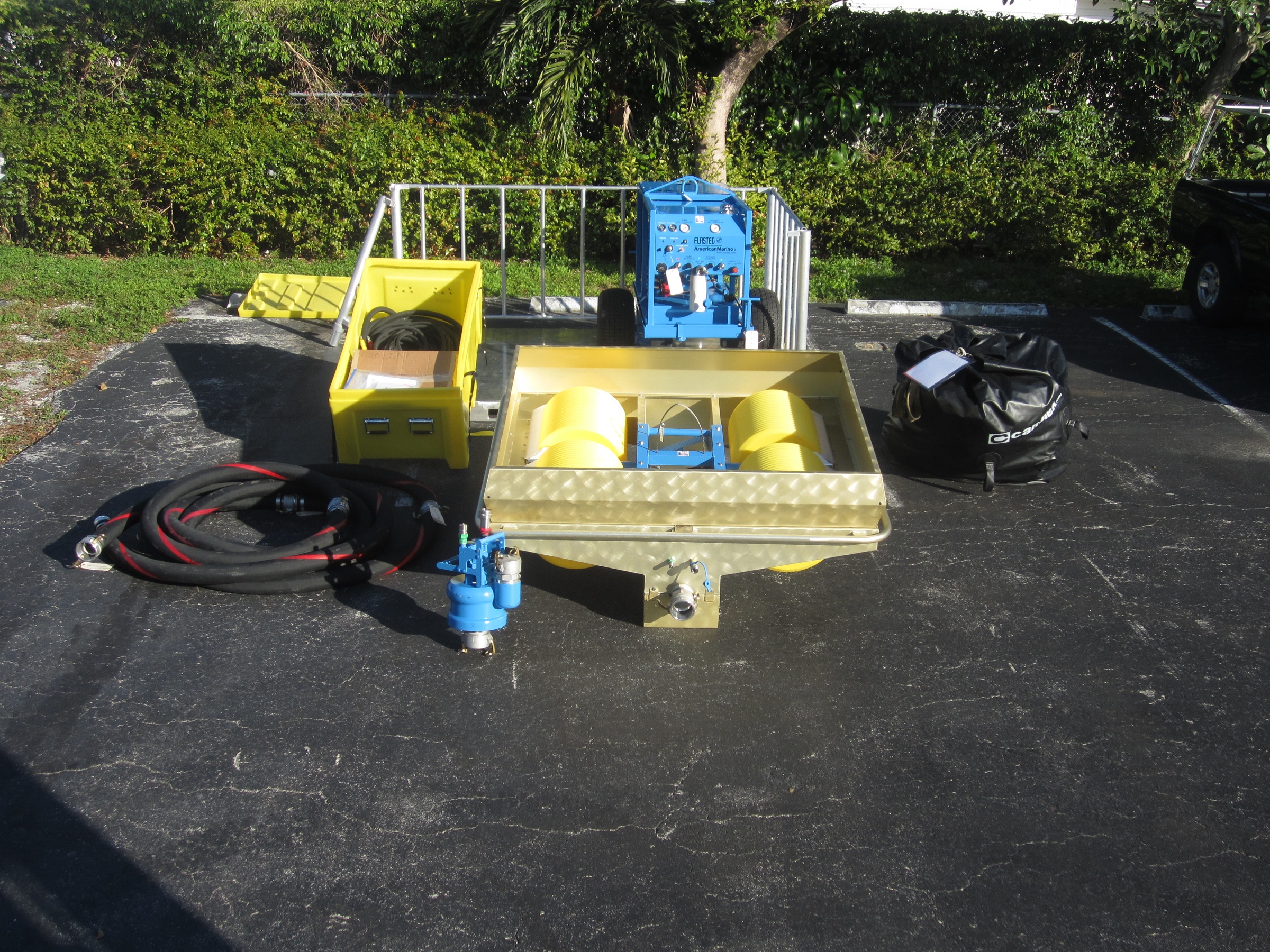

Four Drum Skimmer, Grooved Drums, Diesel Hydraulic Power Pack, Temporary Storage Tank, Packaged in K2

Product Specifications

Serial Number(s)	S-140
Dimensions	116X79X50 in / 295X201X124 cm
Weight	2632 lb / 1194 kg
Air Transport Equiv	1
Units in Stock	3 as of 06 Dec 2012
Type of Oil Effective With:	II, III, IV
Environment:	Near Shore, River
Price	$53,250.00

Product Description (English)

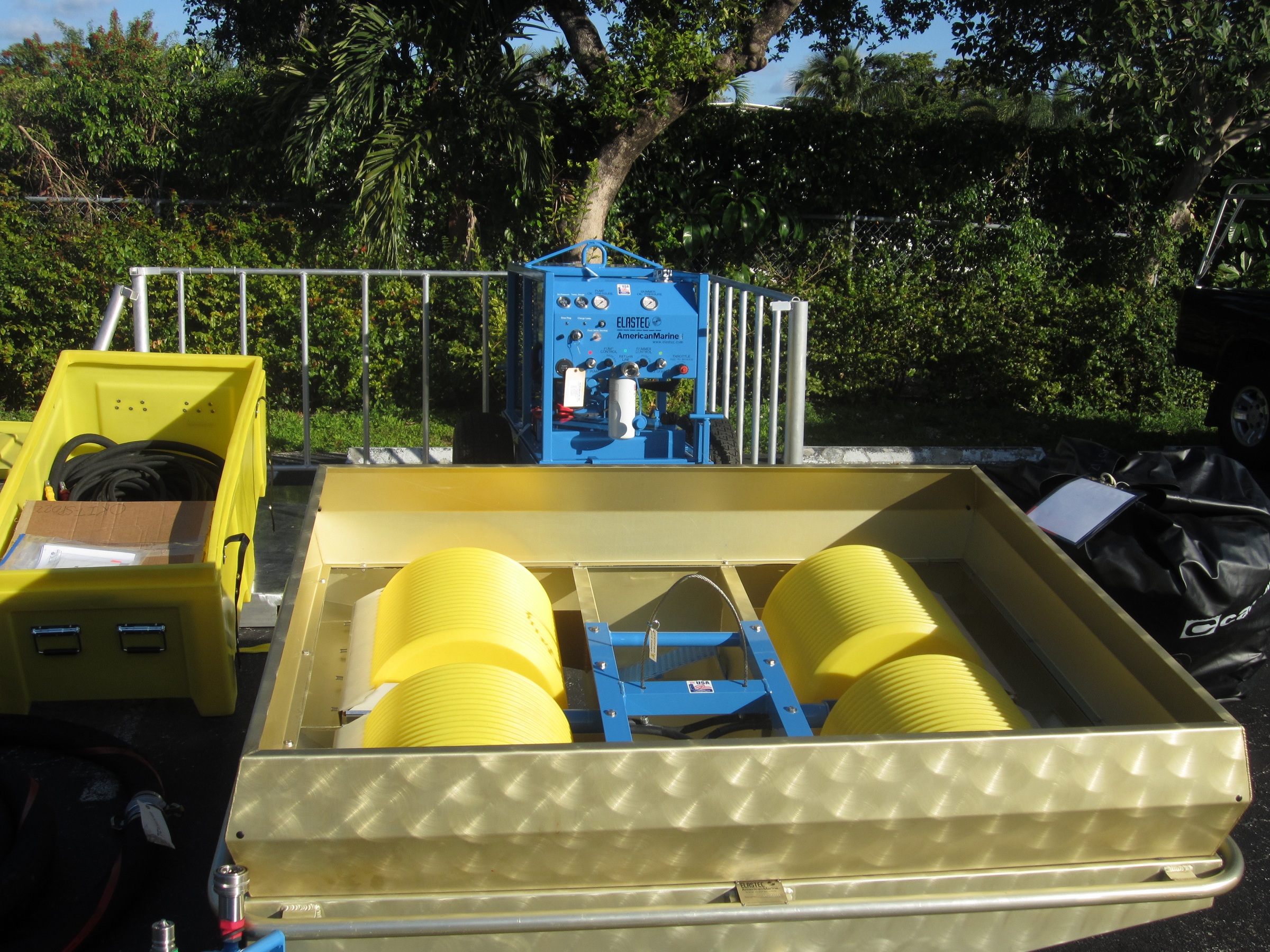

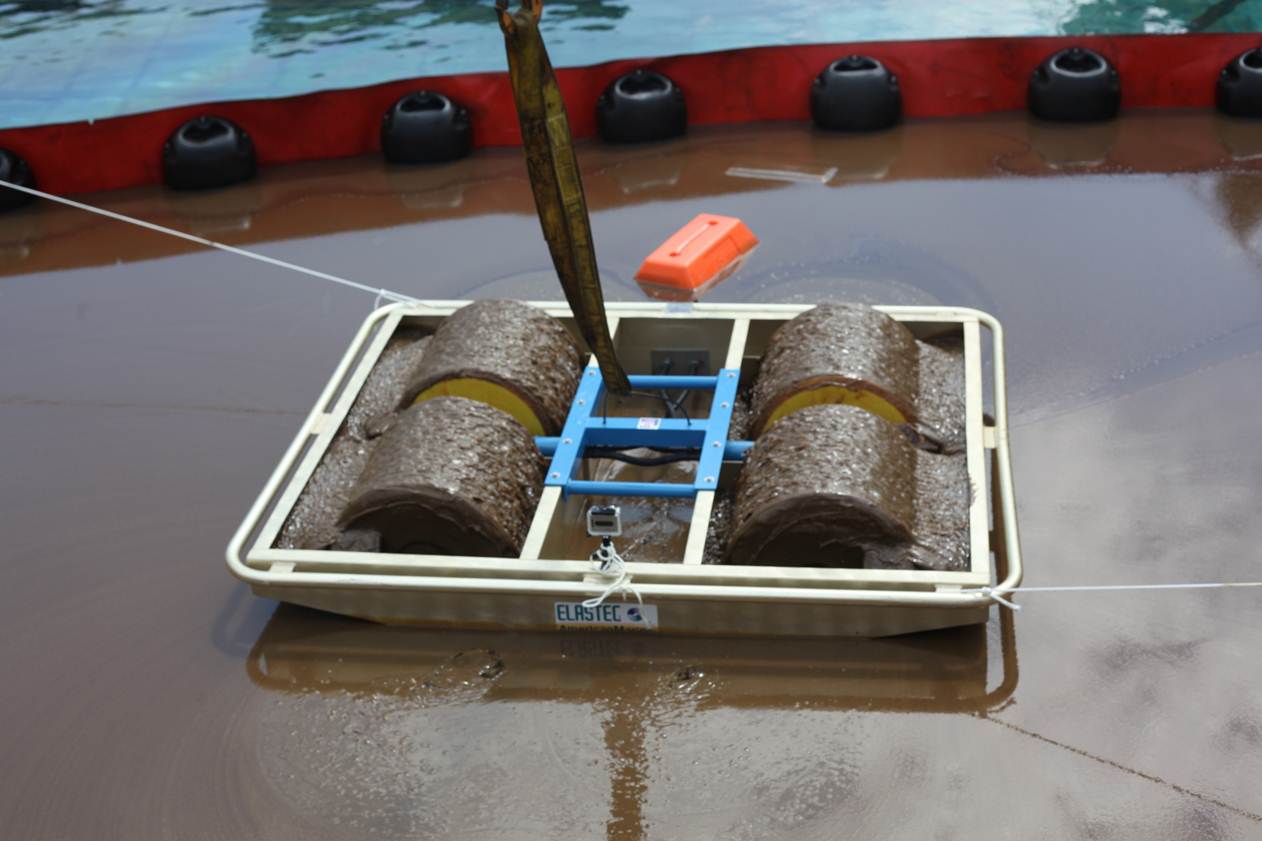

Magnum 110. Four-drum oleophilic skimmer with grooved drums for enhanced recovery rate. Manufacturer/Ohmsett recovery rate of 250 gpm/57 m3 per hour. 3-inch discharge fitting, 60 ft/18m of 3-inch discharge hose included. Skimmer dimensions: 70x57x18 inches/178x145x46 cm. weight 125 lbs/57 kg.

D22 Kubota 22 h.p. Diesel hydraulic power pack to power drums and ES400 screw pump.

Canflex open top tank included for temporary storage 3,000 g./ 71bbls/ 11 m3.

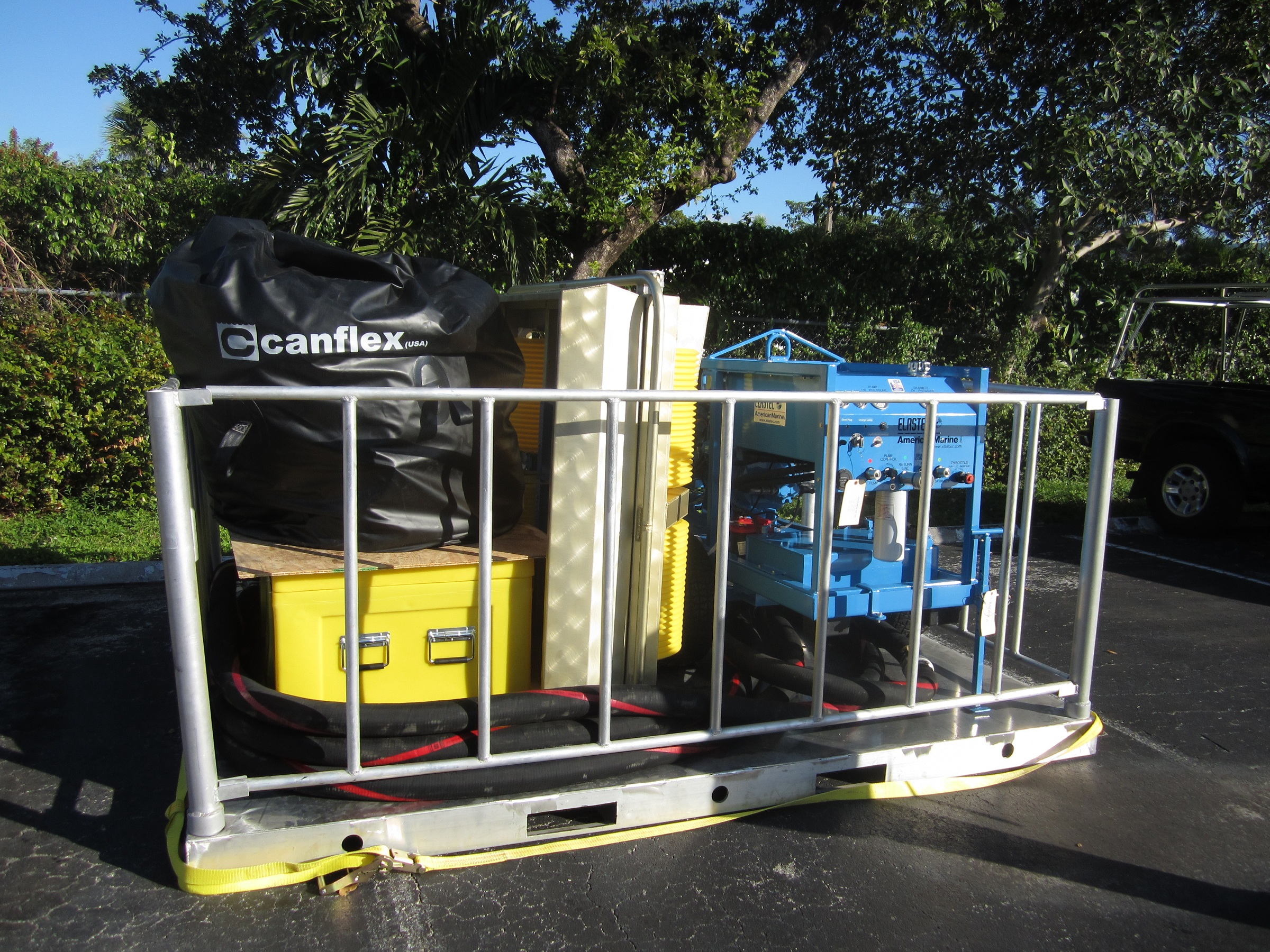

Packaged in K2 container.

Product Description (Spanish)

Cuatro tambores para recolecion del petroleo.

Product Use

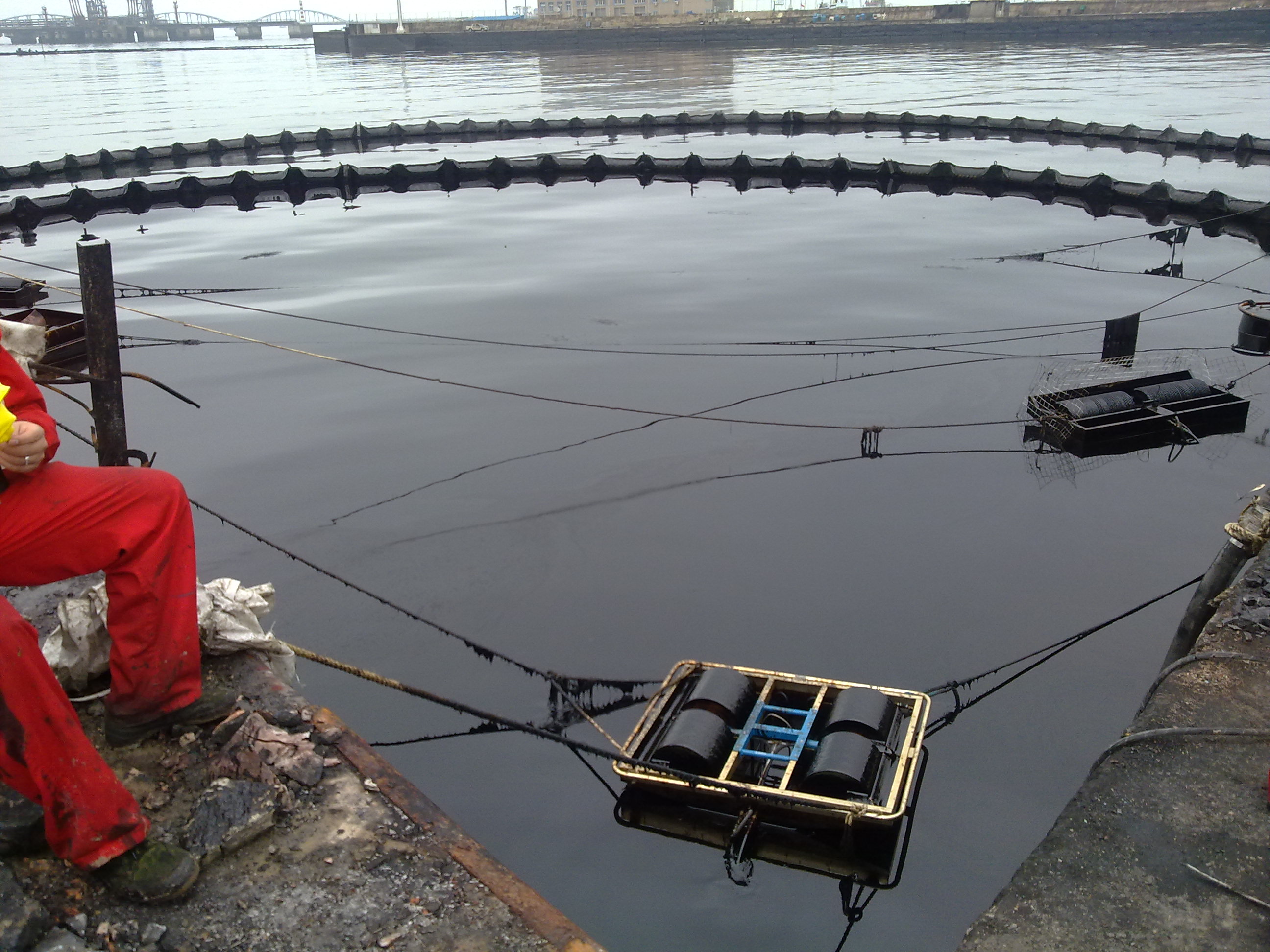

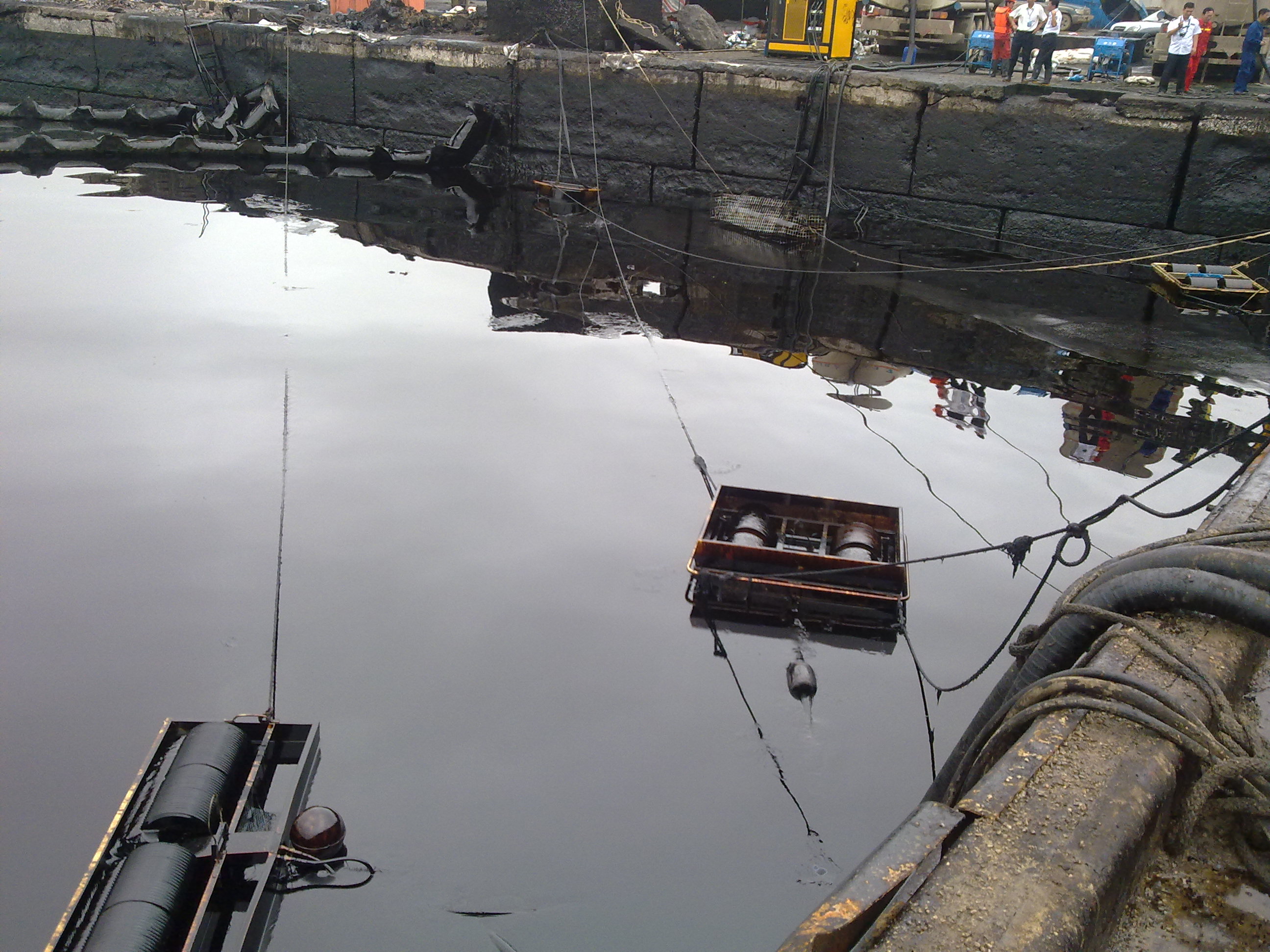

Recovery of floating oil from vessels, docks, bays, and inlets.

Operational Considerations

Light weight 4-drum unit can be deployed by two persons. Simple operation. Works best in calm and protected waters. Skimmer has a removable wavebreaker installed to improve efficiency in wave conditions. Power pack is mounted on 2-wheel chasis with tow bar; all terrain tires.
