Brush/Belt Advancing Skimmer Lamor Minimax 30 BC

Unit Description (English)

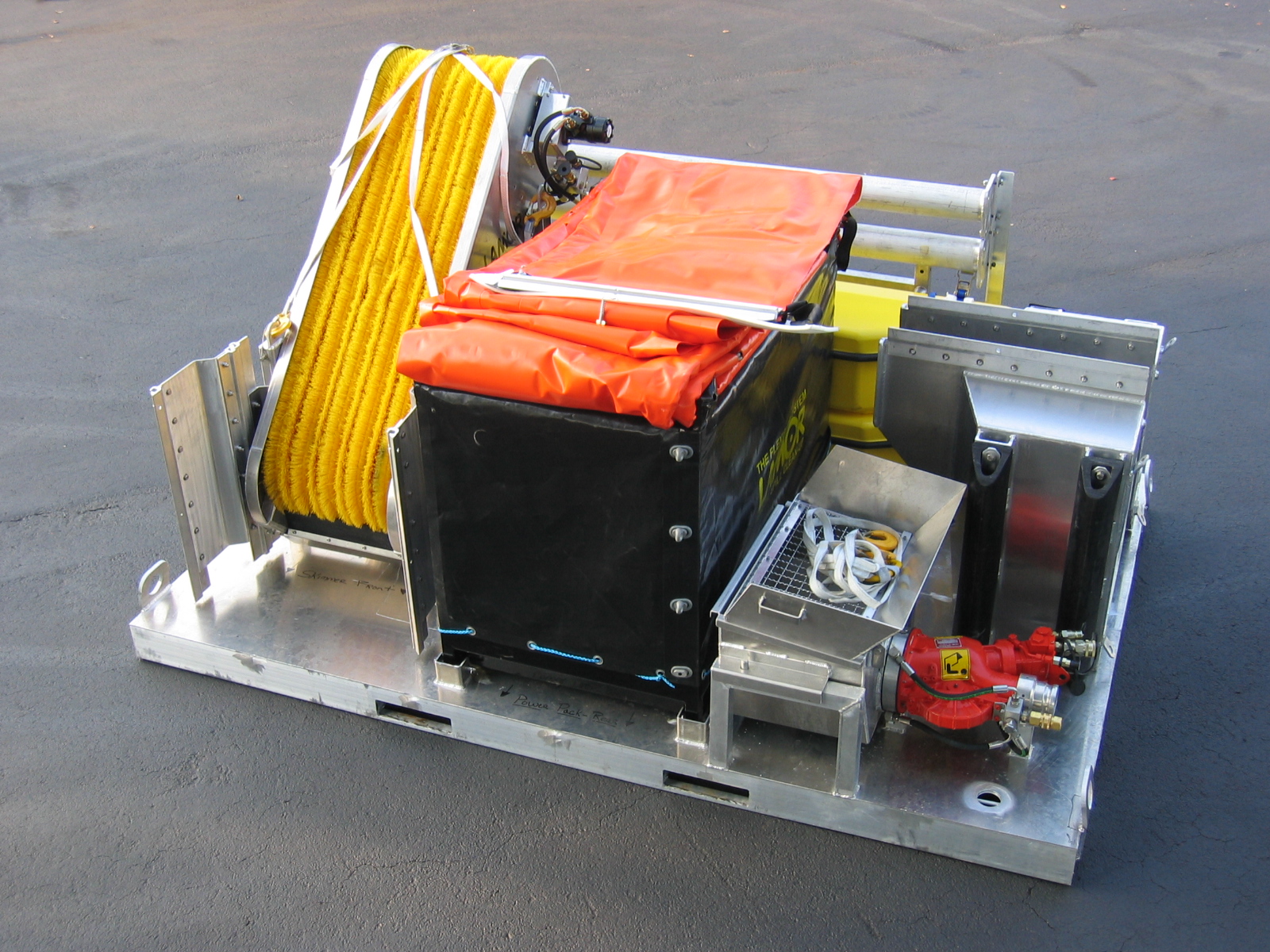

Portable advancing brush type skimmer, powerpack, pump, hoses, and booms packaged on a K-1 skid.

Product Specifications

Serial Number(s)	S-110
Dimensions	116x79x49 in / 295x201x124 cm
Weight	3458 lb / 1572 kg
Air Transport Equiv	1.0
Units in Stock	2 as of 13 Aug 2012
Type of Oil Effective With:	II, III, IV
Environment:	Near Shore, River
Price	$115,500.00

Product Description (English)

Lamor V-brush belt skimmer mounted on pontoons and rigged with two 21 ft. (7 m) boom sweep sections of 30 in./76 cm. overall height. Lamor Power Pack 30, diesel/hydraulic. Desmi DOP-160 vertical screw pump, 121 GPM, 10 bar (147 psi) discharge pressure. 3-in. fittings. 86 ft./26 m. of 3-in. discharge hose.

Product Description (Spanish)

Lamor Minimax 30 BC

Product Use

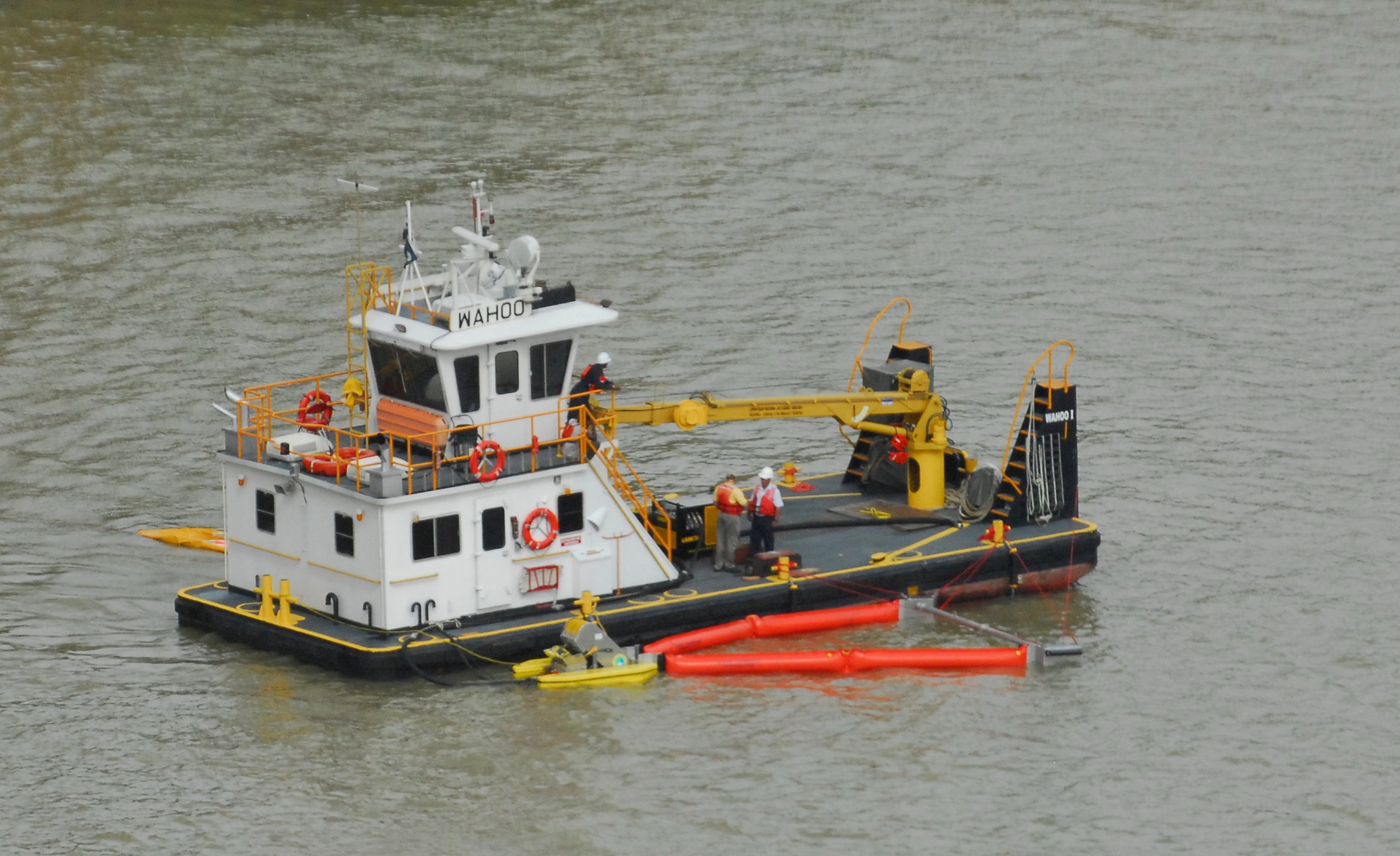

Components can be assembled on vessel of opportunity to create an advancing skimming system on starboard side of vessel. Use outrigger arm, boom sections to funnel oil to skimmer. Can be operated up to 2 1/2 knots speed or standing still. Internal propeller draws oil to skimmer.

Operational Considerations

Vessel of minimum 36 ft. (12 m) length with deck space capable of supporting a 1,400 lb. powerpack. 4-inch flange for skimmer hopper to facilitate offload by a vac-truck or suction pump instead of Desmi DOP 160 pump. Temporary storage is required for recovered oil.
