Vessel Spray, Ayles Fernie Dispersant Eduction Spray System
Unit Description (English) |
||||||||||||||||
|

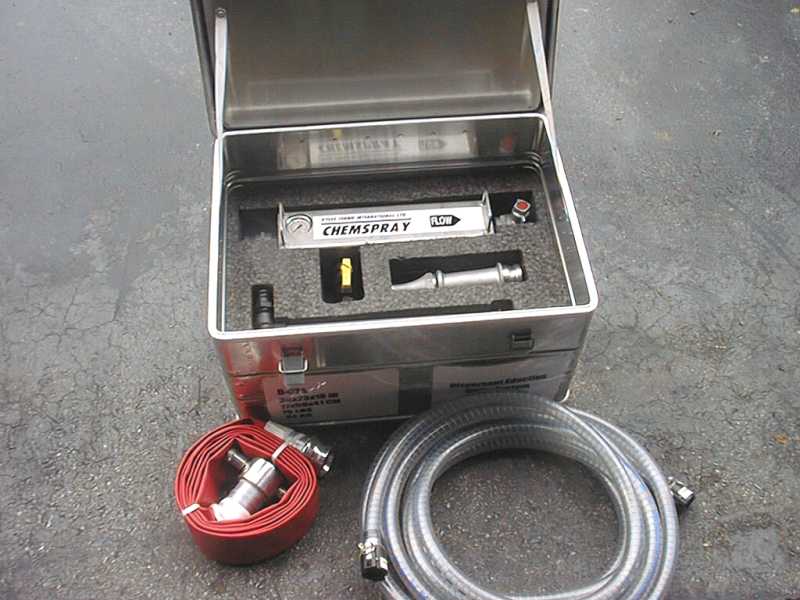

Eductor dispersant application system that utilizes vessel's fire main water supply. Metal Crate with control unit, hoses, and fittings.
|
||||||||||||||||
Product Specifications |
||||||||||||||||
|
||||||||||||||||
Product Description (English) |
||||||||||||||||
|
"First Aid" eductor type dispersant application system that utilizes a vessel's fire main water supply to educt dispersant into the water flow for application of dispersant by a single nozzle. The nozzle gives a spray length of 66 feet/20 m. |
||||||||||||||||
Product Description (Spanish) |
||||||||||||||||
|
Sistema Del Aerosol De la Salida Del Dispersor |
||||||||||||||||
Product Use |
||||||||||||||||
|
Can be used on a vessel of opportunity with a fire main system to quickly apply dispersant to an operational oil spill. Uses a fire main water supply with a capacity of 71 gpm/270lpm @ 100 psi (7 bar) to draw dispersant from drums or a tank. Dispersant can be applied at a rate of up to 24gpm/90lpm. |
||||||||||||||||
Operational Considerations |
||||||||||||||||
|
Must have a source of dispersant and a vessel with a built-in fire main system. Alternatively, can be used with a pump that is capable of producing the required flow. Assorted fittings are provided to match the system to different fire main piping. |
||||||||||||||||
