Floating Bladder Sea Slug (2,500 Gallon/60 bbl/10 tonnes) 1 each

Unit Description (English)

2,500 gallon (60 bbl/ 10 tonnes) 1 bladder each in K-4 aluminum container. Temporary, (towable floating or land) storage for recovered oil.

Product Specifications
Serial Number(s) C-64
Dimensions 82x39x49 in / 208x99x124 cm
Weight 788 lb / 358 kg
Air Transport Equiv 0.33
Units in Stock 1 as of 14 Nov 2012
Type of Oil Effective With: II, III, IV, V
Environment: Ocean, Near Shore, River
Price $21,584.00


Product Description (English)

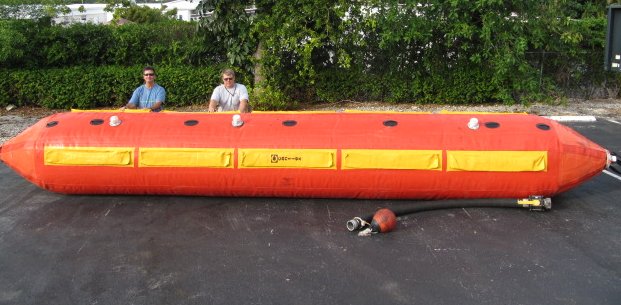

Canflex FCB-25. 2,500 gallon (60 barrel, 10 metric tonnes) towable storage bladder. Constructed of PVC coated polyurethane fabric. 10 feet of 4 inch suction hose attaches to bladder with a 3 inch or 4 inch ball valve, supported by buoy. Adapter fittings and valves are included. 1 packaged in aluminum K-4 container. The container with liner can be used as additional temporary storage, capaacity 552 gal./13 bbl./2 m3.


Product Description (Spanish)

Tanque De 2.500 Galones


Product Use

Temporary floating storage for recovered oil in support of on-water skimming operations. Can also be used for storage of recovered oil on land when placed in a shallow pit for support.


Operational Considerations

Vessel operators need to exercise care in towing bladders by being aware of the draft and in maneuvering alongside piers. Filling and discharging is accomplished through use of ball valve at end of hose which is suspended by a floating buoy. Air inflatable chamber in nose for buoyancy. Each unit, along with its fittings, is individually packaged in a heavy bag for easy handling.
